AEM Dispatcher Installation Automation

SYNOPSIS:

Following script will create dispatcher folder and will assign appropriate permissions. Then it will create docroot, logs and scripts folders inside dispatcher folder. Scripts copies the necessary files for dispatcher and also populates the scripts with dynamic variables. Later, checks if required IIS AppPool is present, if not terminates the website creation and the script too. Finally, does the house keeping as well by cleaning up any temporary files created during script execution.

Script is IDEMPOTENT.

ASSUMPTIONS:

  • web.config file with necessary modifications is present at BASEPATH
  • dispatcher.any file with necessary modifications is present at BASEPATH
  • disp_iss.dll file with necessary modifications is present at BASEPATH
  • disp_iss.ini file with necessary modifications is present at BASEPATH
[main]
configpath=${DISPSCRIPTS}\dispatcher.any
loglevel=3
servervariables=1
logfile=${DISPLOGS}\dispatcher.%Y-%m-%d-%H_%M_%S.log
rotate=5M

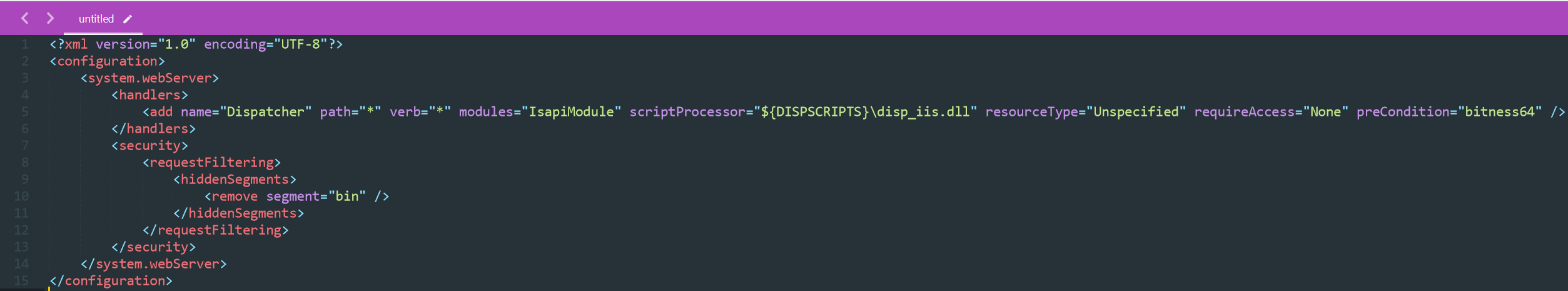

web.config file with Dynamic ISAPI module path
# Variables Declaration
param(
        [String][parameter(Mandatory=$False,ValueFromPipeline=$False)]$BASEPATH="C:\Users\SKYDEVOPS\AEM\zinstaller",
        [String][parameter(Mandatory=$False,ValueFromPipeline=$False)]$DISPATCHER="C:\dispatcher2",
        [String][parameter(Mandatory=$False,ValueFromPipeline=$False)]$DOCROOT="$DISPATCHER" + "\docroot",
        [String][parameter(Mandatory=$False,ValueFromPipeline=$False)]$DISPLOGS="$DISPATCHER" + "\logs",
        [String][parameter(Mandatory=$False,ValueFromPipeline=$False)]$DISPSCRIPTS="$DISPATCHER" + "\scripts",
        [String][parameter(Mandatory=$False,ValueFromPipeline=$False)]$TEMPFILE="$BASEPATH" + "\tempfile",
        [String][parameter(Mandatory=$False,ValueFromPipeline=$False)]$DOCROOTMOD=$DOCROOT.replace("\","/"),
        [String][parameter(Mandatory=$False,ValueFromPipeline=$False)]$CQ_HOST="127.0.0.1",
        [int][parameter(Mandatory=$False,ValueFromPipeline=$False)]$CQ_PORT=4503,
        [String][parameter(Mandatory=$False,ValueFromPipeline=$False)]$myWebSiteName="CQ_Dispatcher",
        [String][parameter(Mandatory=$False,ValueFromPipeline=$False)]$myWebSitePoolName="DefaultAppPool",
        [int][parameter(Mandatory=$False,ValueFromPipeline=$False)]$myWebSitePort=80,
        [String][parameter(Mandatory=$False,ValueFromPipeline=$False)]$myWebSiteProtocol="http",
        [String][parameter(Mandatory=$False,ValueFromPipeline=$False)]$myWebSiteIP="*",
        [String][parameter(Mandatory=$False,ValueFromPipeline=$False)]$myWebSitePath="$DOCROOT"
    )

$ErrorActionPreference      = 'Stop'
$WarningPreference          = 'SilentlyContinue'

# Create Folders if it doesnt Exist
    # DISPATCHER Folder
    if (!(Test-PATH -Path $DISPATCHER)) {
        Write-Host -ForegroundColor Red "{{EJS0}}$DISPATCHER Path Found"
        $acl = Get-Acl -Path $DISPATCHER

        # add a new permission (FullControl, Modify, Read)
        $permission = 'IIS AppPool\DefaultAppPool', 'FullControl', 'ContainerInherit, ObjectInherit', 'None', 'Allow'
        $rule = New-Object -TypeName System.Security.AccessControl.FileSystemAccessRule -ArgumentList $permission
        $acl.SetAccessRule($rule)
        $acl | Set-Acl $DISPATCHER
    }

    # DISPATCHER DOCROOT Folder
    if (!(Test-PATH -Path $DOCROOT)) {
        Write-Host -ForegroundColor Red "{{EJS1}}$DOCROOT Path Found"
        if (!(Test-PATH -Path $DISPSCRIPTS\rewritemaps.config)) {
            Copy-Item -Path $BASEPATH\IIS\rewritemaps.config -Destination $DOCROOT\
        }

        if (!(Test-PATH -Path $DISPSCRIPTS\web.config)) {
            Copy-Item -Path $BASEPATH\IIS\web.config -Destination $TEMPFILE
            $ImportWCONF = Get-Content $TEMPFILE -Raw
            $ExecutionContext.InvokeCommand.ExpandString($ImportWCONF) | Set-Content $TEMPFILE
            Copy-Item -Path $TEMPFILE -Destination $DOCROOT\
            Rename-Item -Path "$DOCROOT\tempfile" -NewName  "$DOCROOT\web.config"
        }
    }

    # DISPATCHER Logs Folder
    if (!(Test-PATH -Path $DISPLOGS)) {
        Write-Host -ForegroundColor Red "{{EJS2}}$DISPLOGS Path Found"
    }

    # DISPATCHER scripts Folder
    if (!(Test-PATH -Path $DISPSCRIPTS)) {
        Write-Host -ForegroundColor Red "{{EJS3}}$DISPSCRIPTS Path Found"
        if (!(Test-PATH -Path $DISPSCRIPTS\disp_iis.ini)) {
            Copy-Item -Path $BASEPATH\IIS\disp_iis.ini -Destination $TEMPFILE
            $ImportINI = Get-Content $TEMPFILE -Raw
            $ExecutionContext.InvokeCommand.ExpandString($ImportINI) | Set-Content $TEMPFILE
            Copy-Item -Path $TEMPFILE -Destination $DISPSCRIPTS\
            Rename-Item -Path "$DISPSCRIPTS\tempfile" -NewName  "$DISPSCRIPTS\disp_iis.ini"
        }

        if (!(Test-PATH -Path $DISPSCRIPTS\disp_iis.dll)) {
            Copy-Item -Path $BASEPATH\IIS\disp_iis.dll -Destination $DISPSCRIPTS\
        }

        if (!(Test-PATH -Path $DISPSCRIPTS\dispatcher.any)) {
            Copy-Item -Path $BASEPATH\IIS\dispatcher.any -Destination $TEMPFILE
            $ImportANY = Get-Content $TEMPFILE -Raw
            $ExecutionContext.InvokeCommand.ExpandString($ImportANY) | Set-Content $TEMPFILE
            Copy-Item -Path $TEMPFILE -Destination $DISPSCRIPTS\
            Rename-Item -Path "$DISPSCRIPTS\tempfile" -NewName  "$DISPSCRIPTS\dispatcher.any"
        }

        if (!(Test-PATH -Path $DISPSCRIPTS\web.config)) {
            Copy-Item -Path $BASEPATH\IIS\web.config -Destination $DISPSCRIPTS\
        }
    }

# IIS DefaultAppPool
Write-Host -ForegroundColor Yellow "`nChecking IIS APP POOLS"
$SKYARRAY = @()
$APPPOOLS = 'DefaultAppPool'
foreach ($APPPOOL in $APPPOOLS) {
    $MyPool = (get-IISAppPool) | where-object {$_.Name -eq "$APPPOOL"}
    $SKYARRAY += New-Object psobject -Property @{
        Name = $APPPOOL
        Status =    if (!($MyPool.State)) {Write-Output  "NA"}else {Write-Output $MyPool.State}
        Exist =     if (!($MyPool)) {Write-Output "Not-Found"}else {Write-Output "Found"}
    }
}
$SKYARRAY | format-table -Property Name, Exist, Status

if ($SKYARRAY[0].Name -eq "$myWebSitePoolName") {
    Write-Output "$myWebSitePoolName Found"
    # Create Website
    Import-Module "WebAdministration"
    if ($(Get-Website | Where-Object { $_.Name -eq "$myWebSiteName" }) -eq $null) {
        Write-Host "WebSite $myWebSiteName Not-Found"
        Write-Host -ForegroundColor Green "Creating WebSite $myWebSiteName"
        New-WebSite -Name $myWebSiteName -IPAddress $myWebSiteIP -Port $myWebSitePort -PhysicalPath $myWebSitePath -ApplicationPool $myWebSitePoolName
        # Remove temporary files
        if (Test-PATH $TEMPFILE) {
            Remove-Item -Path $TEMPFILE
        }
        Write-Host -ForegroundColor Green "Done."
    }else {
        Write-Host "WebSite $myWebSiteName Found"
        $DELCONFIRM = Read-Host "Do you want to Delete and Re-Create WebSite $myWebSiteName [y/n]:"
        if ($DELCONFIRM -eq "y" -or $DELCONFIRM -eq "Y" -or $DELCONFIRM -eq "yes") {
            Remove-WebSite -Name $myWebSiteName
            Write-Host -ForegroundColor Green "Creating Website $myWebSiteName"
            New-WebSite -Name $myWebSiteName -IPAddress $myWebSiteIP -Port $myWebSitePort -PhysicalPath $myWebSitePath -ApplicationPool $myWebSitePoolName
        }else {
            Write-Host -ForegroundColor Red "WebSite $myWebSiteName Not Deleted"
            if (Test-PATH $TEMPFILE) {
                Remove-Item -Path $TEMPFILE
            }
            Write-Host -ForegroundColor Green "Script Execution Done."
            Exit
        }
    }
}else {
    Write-Host -ForegroundColor Red "$myWebSitePoolName Not-Found, Terminating Website Creation"
    Exit
}

To get Help and check the available parameters use the following Command

Get-Help .\aem_iss.ps1 -Full

Following is the output in a Text Format


NAME
    C:\Users\SKYDEVOPS\Documents\scripts\IIS\aem_iis.ps1

SYNOPSIS
    This script installs and configures AEM Dispatcher on IIS, using golden config files.

SYNTAX
    C:\Users\SKYDEVOPS\Documents\scripts\IIS\aem_iis.ps1 [[-BASEPATH] ] [[-DISPATCHER] ] [[-DOCROOT] ] [[-DISPLOGS] ] [[-DISPSCRIPTS] ] [[-TEMPFILE] ] [[-DOCROOTMOD] ] [[-CQ_HOST] ]
    [[-CQ_PORT] ] [[-myWebSiteName] ] [[-myWebSitePoolName] ] [[-myWebSitePort] ] [[-myWebSiteProtocol] ] [[-myWebSiteIP] ] [[-myWebSitePath] ] []

DESCRIPTION
    Installs AEM Dispatcher on windows
    Features:
        1.  Checks for dispatcher folder, if not present it will create dispatcher folder
            1.1.    Adds DefaultAppPool user
            1.2.    Adds permissions to dispathcer folder
        2.  Checks for docroot folder, if not present creates it
            2.1.    Copies rewritemaps.config file
            2.2.    Copies and Modifies web.config file and dynamically adds ScriptProcessor PATH
        3.  Checks if logs folder is present, if not creates
        4.  Checks for scripts folder, if not present creates it
            4.1.    Copies DLL file
            4.2.    Copies disp_iis.ini and dynamically populates configpath, logfile
            4.3.    Copies dispatcher.any and dynamically populates hostname, port, and docroot
            4.4.    Copies rewritemaps.config file
            4.5.    Copies and Modifies web.config file and dynamically adds ScriptProcessor PATH
        5.  Checks if DefaultAppPool exists
        6.  Create WebSite

PARAMETERS
    -BASEPATH
        PATH where all the required files and golden configs are available

        Required?                    false
        Position?                    1
        Default value                C:\Users\SKYDEVOPS\AEM\zinstaller
        Accept pipeline input?       false
        Accept wildcard characters?  false

    -DISPATCHER
        PATH where dispatcher will be created

        Required?                    false
        Position?                    2
        Default value                C:\dispatcher2
        Accept pipeline input?       false
        Accept wildcard characters?  false

    -DOCROOT
        PATH for the docroot

        Required?                    false
        Position?                    3
        Default value                "$DISPATCHER" + "\docroot"
        Accept pipeline input?       false
        Accept wildcard characters?  false

    -DISPLOGS
        PATH for dispatcher logs

        Required?                    false
        Position?                    4
        Default value                "$DISPATCHER" + "\logs"
        Accept pipeline input?       false
        Accept wildcard characters?  false

    -DISPSCRIPTS
        PATH for dispatcher scripts folder

        Required?                    false
        Position?                    5
        Default value                "$DISPATCHER" + "\scripts"
        Accept pipeline input?       false
        Accept wildcard characters?  false

    -TEMPFILE
        Temporary file for modifying and populating dynamic variables on the fly

        Required?                    false
        Position?                    6
        Default value                "$BASEPATH" + "\tempfile"
        Accept pipeline input?       false
        Accept wildcard characters?  false

    -DOCROOTMOD
        Temporary parameter for modifying the path of docroot

        Required?                    false
        Position?                    7
        Default value                $DOCROOT.replace("\","/")
        Accept pipeline input?       false
        Accept wildcard characters?  false

    -CQ_HOST
        Hostname of the AEM Publish instance

        Required?                    false
        Position?                    8
        Default value                127.0.0.1
        Accept pipeline input?       false
        Accept wildcard characters?  false

    -CQ_PORT
        Port on which AEM publish instance is running

        Required?                    false
        Position?                    9
        Default value                4503
        Accept pipeline input?       false
        Accept wildcard characters?  false

    -myWebSiteName
        Name of the WebSite on IIS

        Required?                    false
        Position?                    10
        Default value                CQ_Dispatcher
        Accept pipeline input?       false
        Accept wildcard characters?  false

    -myWebSitePoolName
        Name of the AppPool under which the website is created

        Required?                    false
        Position?                    11
        Default value                DefaultAppPool
        Accept pipeline input?       false
        Accept wildcard characters?  false

    -myWebSitePort
        Port on which the website will be running

        Required?                    false
        Position?                    12
        Default value                80
        Accept pipeline input?       false
        Accept wildcard characters?  false

    -myWebSiteProtocol
        Protocol on which the website will be running Ex: http,https

        Required?                    false
        Position?                    13
        Default value                http
        Accept pipeline input?       false
        Accept wildcard characters?  false

    -myWebSiteIP
        IP address of the website

        Required?                    false
        Position?                    14
        Default value                *
        Accept pipeline input?       false
        Accept wildcard characters?  false

    -myWebSitePath
        Physical path of the website files, Here, its Dispatcher Docroot

        Required?                    false
        Position?                    15
        Default value                "$DOCROOT"
        Accept pipeline input?       false
        Accept wildcard characters?  false

        This cmdlet supports the common parameters: Verbose, Debug,
        ErrorAction, ErrorVariable, WarningAction, WarningVariable,
        OutBuffer, PipelineVariable, and OutVariable. For more information, see
        about_CommonParameters (https:/go.microsoft.com/fwlink/?LinkID=113216).

INPUTS
    NONE

OUTPUTS
    Only Console Output

NOTES

        Author:     Shashi yebbare (syebbare@skydevops.in)
        Company:    Skydevops Pvt. Ltd. (www.skydevops.co.in)
        Version:    2.0.0

    -------------------------- EXAMPLE 1 --------------------------

    PS c:\> .\aem_iis.ps1

RELATED LINKS
    https://docs.microsoft.com/en-us/iis/configuration/system.webServer/handlers/add#005
    https://social.technet.microsoft.com/wiki/contents/articles/15994.powershell-advanced-function-parameter-attributes.aspx
    https://docs.microsoft.com/en-us/powershell/module/microsoft.powershell.core/about/about_comment_based_help?view=powershell-6
Advertisements

Shashi View All

-== Superman ==-

Leave a Reply

This site uses Akismet to reduce spam. Learn how your comment data is processed.
